Semma Walls

Garden & Retaining Walls

Semma Walls

Garden & Retaining Walls

Semma Wall is a double-sided retaining wall block system with tapered sides and an independent mechanical interlock for vertical or battered walls. Designed with exceptional shear strength and contractor-friendly cored units, it provides lasting solutions for raised patios, structural retaining walls, and free-standing parapets.

  • Style and Design – Double-sided split face design with timeless stone character.

  • Durability and Resistance – Manufactured with Dry Cast concrete for superior strength, weather resistance, and long-term performance.

  • Texture Options – Split finish with rugged surface detail.

  • Color Palette – Offered in Shale Grey, Champlain Grey, Chestnut Brown, and Sandlewood.

  • Size Formats – Wall unit: 16 x 11 x 5 7/8 in (406 x 279 x 150 mm); corner & pillar kit: 16 x 10 1/2 x 5 7/8 in (406 x 266 x 150 mm).

  • Applications – Ideal for retaining walls, raised patios, parapet walls, garden enclosures, and modern landscape accents.

  • Engineering Strength – 4-cored system with gravel-filled voids provides shear strength, interlock, and joint dispersion.

  • Warranty – Protected by a limited lifetime warranty for lasting peace of mind.

Semma Wall is engineered for structural performance while delivering the refined appearance of modern retaining wall blocks. Its independent mechanical interlock and tapered design allow the construction of both vertical and battered walls, while the integrated Coin feature supports raised patios with free-standing parapets. The 4-core system, when gravel-filled, adds interlock, strength, and joint stability, making Semma an advanced retaining wall block system for demanding projects. Available in a rugged split finish and four versatile colors, Semma combines durability, flexibility, and style. Supported by matching pillar kits and backed by a limited lifetime warranty, it ensures lasting strength and design freedom in any landscape.

  • Decorative Wall
  • Patio & Terrace
  • Garden
  • Outdoor Water Feature
  • Outdoor Fire Feature

  • Texture / Surface: Split Face (double-sided)
  • Sizes:
    • Wall Unit (Regular): 16 in × 11 x 5 7/8 (406 x 279 x 150 mm)
    • Corner & Pillar Kit: 16 in × 10 1/2 x 5 7/8 (406 x 266 x 150mm)
  • Curved Wall Minimum Radius:
    • Retaining Walls: 7 ft (2.1 m)
    • Freestanding Walls: 20" (519 mm) Inside radius | 32" (807 mm) Outside Radius
  • System Type: Double-sided retaining wall block
  • Interlock Mechanism: Independent mechanical interlock; 4-core system with gravel-filled voids for strength and joint dispersion
  • Manufacturing: Dry-cast concrete
  • Approx. Weight per Pallet: 2,363 lbs (1,072 kg) for wall; 1,403 lbs (636 kg) for corner/pillar kit
  • Coverage: 26.25 ft² (2.44 m²) per wall pallet / 21.74 ft² average coverage for double-sided walls
  • Installation: Vertical or battered alignment; corner units secured with concrete adhesive
  • Applications: Retaining walls, raised patios, garden borders, and freestanding walls
  • Warranty: Limited lifetime warranty

Don’t find the specs you need here?

Explore full technical documentation for Semma Wall.

View Technical Documentation

Can Semma be used for retaining walls?

Yes, Semma is designed for gravity and reinforced segmental retaining walls for landscaping and structural applications.

Are Semma walls double-sided?

Yes, Semma blocks feature a split-face finish on both sides, making them ideal for freestanding or double-exposed walls.

Are Semma walls frost- and salt-resistant?

Yes, Semma walls are manufactured for freeze-thaw durability and de-icing salt resistance when installed per Techo-Bloc guidelines.

Can lighting be integrated into Semma walls?

Yes, Semma walls and pillars can include under-cap or wall lighting; plan low-voltage wiring during construction.

Are there matching caps for Semma?

Yes, Semma walls pair with Techo-Bloc wall caps, including Raffinato Smooth, Brandon, and York options.

Is sealing recommended for Semma walls?

Sealing is optional; it can enhance color and surface protection but is not required for performance.

What is the warranty on Semma walls?

Semma walls carry a limited lifetime transferable residential warranty covering structural integrity and salt resistance.

How high can Semma walls be built without reinforcement?

Gravity walls can reach up to 30 in (750 mm) under optimal conditions. Taller applications require geogrid reinforcement.

Are Semma walls comfortable for seating walls?

Yes, when finished with smooth or rounded caps, Semma walls provide a comfortable seating surface.

How does Semma compare to Brandon or Raffinato walls?

Semma offers a double-sided, rugged texture for larger wall builds, while Brandon and Raffinato focus on modern, modular designs.

What base or drainage preparation is required for Semma walls?

Excavate to competent subgrade, install a compacted granular leveling pad at least 6 in (150 mm) thick, plus drain pipe and clean stone backfill.

Does Semma require geogrid reinforcement?

Yes, use geogrid for walls exceeding 30 in (750 mm) or for retained slopes and other surcharges; follow Techo-Bloc design charts.

What adhesives work best for Semma caps?

Use Flexlock Ultra Performance Concrete Adhesive or an equivalent polymer-based adhesive to secure caps.

How should Semma walls be capped or finished?

Apply compatible Techo-Bloc caps, such as Raffinato, Brandon, or York, with adhesive on clean, dry surfaces.

What height limits apply for slopes vs. level ground?

On level sites, Semma can reach 30 in (750 mm) without reinforcement. Sloped sites may require reduced height or more geogrid.

Can Semma walls be combined with Raffinato Smooth or Brandon caps?

Yes, Semma integrates with these cap styles for aesthetic contrast and functional finishing.

What adhesives or connectors secure wall courses?

Mechanical connectors align and lock each course for retaining applications; freestanding sections and caps require Flexlock adhesive.

Can lighting be integrated during installation?

Yes, install conduit or low-voltage cable behind or beneath caps during wall assembly.

Are Semma walls suitable for fire pit enclosures?

Yes, provided a fire-rated insert or protective liner prevents direct flame contact with the concrete units.

What backfill materials are recommended?

Use 3/4 in (19 mm) clean angular stone behind the wall; compact in 6 in (150 mm) lifts for drainage and stability.

Authentic split-face texture

Crafted with a rugged, double-sided split-face finish, Semma captures the timeless beauty of natural stone from every angle. Its refined texture brings depth and authenticity to retaining walls, garden enclosures, and freestanding parapets alike.

Engineered strength & interlock

Semma’s four-cored system and independent mechanical interlock deliver outstanding structural integrity and shear resistance. This advanced engineering allows both vertical and battered wall configurations to stand firm under demanding conditions.

Contractor-friendly design

Tapered sides and cored units make Semma exceptionally easy to handle, align, and install with precision. Corners are manufactured and packaged with the wall block units for perfect height and color consistency. It also curves beautifully with a 7ft minimum radius for retaining wall applications.

Compare Semma wall with other Techo-Bloc walls

Swipe to Compare Products

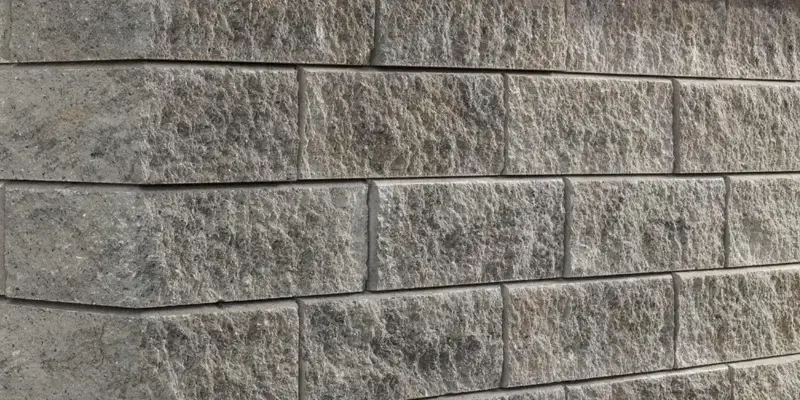

Semma Wall split-face retaining wall texture in warm grey tones

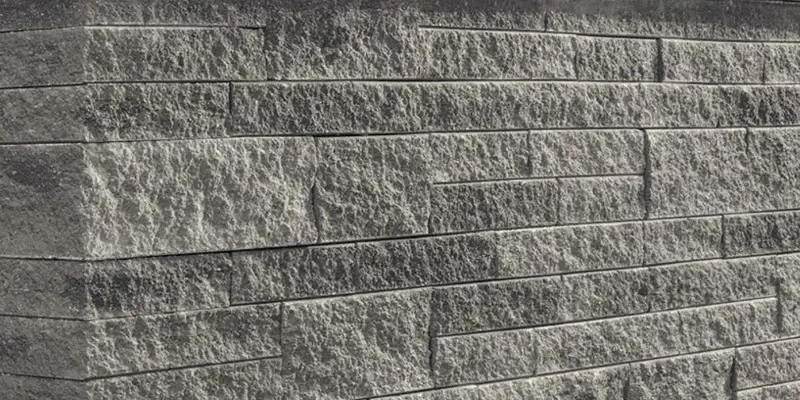

Mini-Creta Wall split-face concrete wall texture with a natural stone look

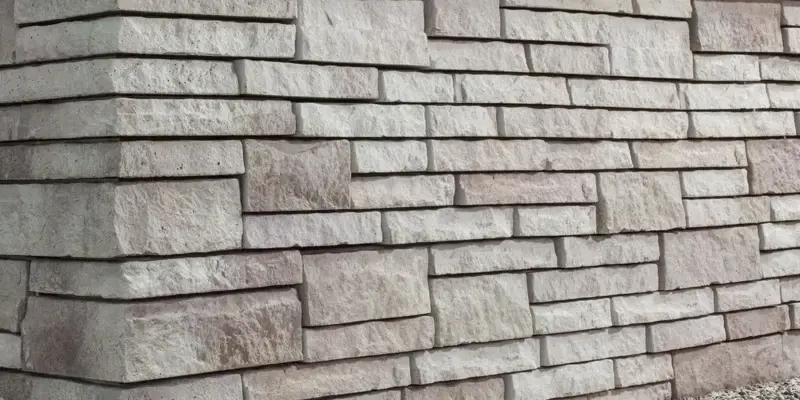

Prescott Wall stacked-stone wall texture with deep natural variation
Style Classic / Structural Split-Face Modular wall with split-face finish for a natural old-stone look Stacked-stone rustic wall with bold quarry-cut texture
Color Palette Warm and cool earth tones inspired by natural stone Earth tones and natural colors Rich natural colors inspired by traditional masonry
Texture / Finish Double-sided split-face with rugged stone character Full split face with sharp edges Distinctly chiseled surface with deep, natural variation
Modularity Two unit types: Wall + Corner & Pillar Kit Two heights: 3" and 6" Two heights (2¼″ & 4½″) and random 9–15″ lengths for versatile patterning
Double-Sided

Yes

Yes

Yes

Wall Types Retaining, freestanding, pillar, steps Retaining, freestanding, pillar, steps Retaining, freestanding, pillar, steps
Curved retaining walls (minimum radius)

Yes (2.1 m / 7′ 0″ radius)

Yes (2.1 m / 7′ 0″ radius)

Yes (1.6 m / 5′ 2″ radius)

Retaining Wall Height (with geogrid) More than 10 ft Up to 10 ft Up to 4 ft
Connectors

Yes

Yes

Yes

Applications Retaining & garden walls, raised patios, pillars, planters Retaining & garden walls, pillars, steps, fire features Ideal for decorative, freestanding, or low retaining wall designs
Best For Projects requiring both aesthetic appeal and structural strength, ideal for dual-sided or mid-scale builds Decorative and light structural projects with refined split-stone appeal Perfect for small to mid-height applications showcasing authentic stone detail
